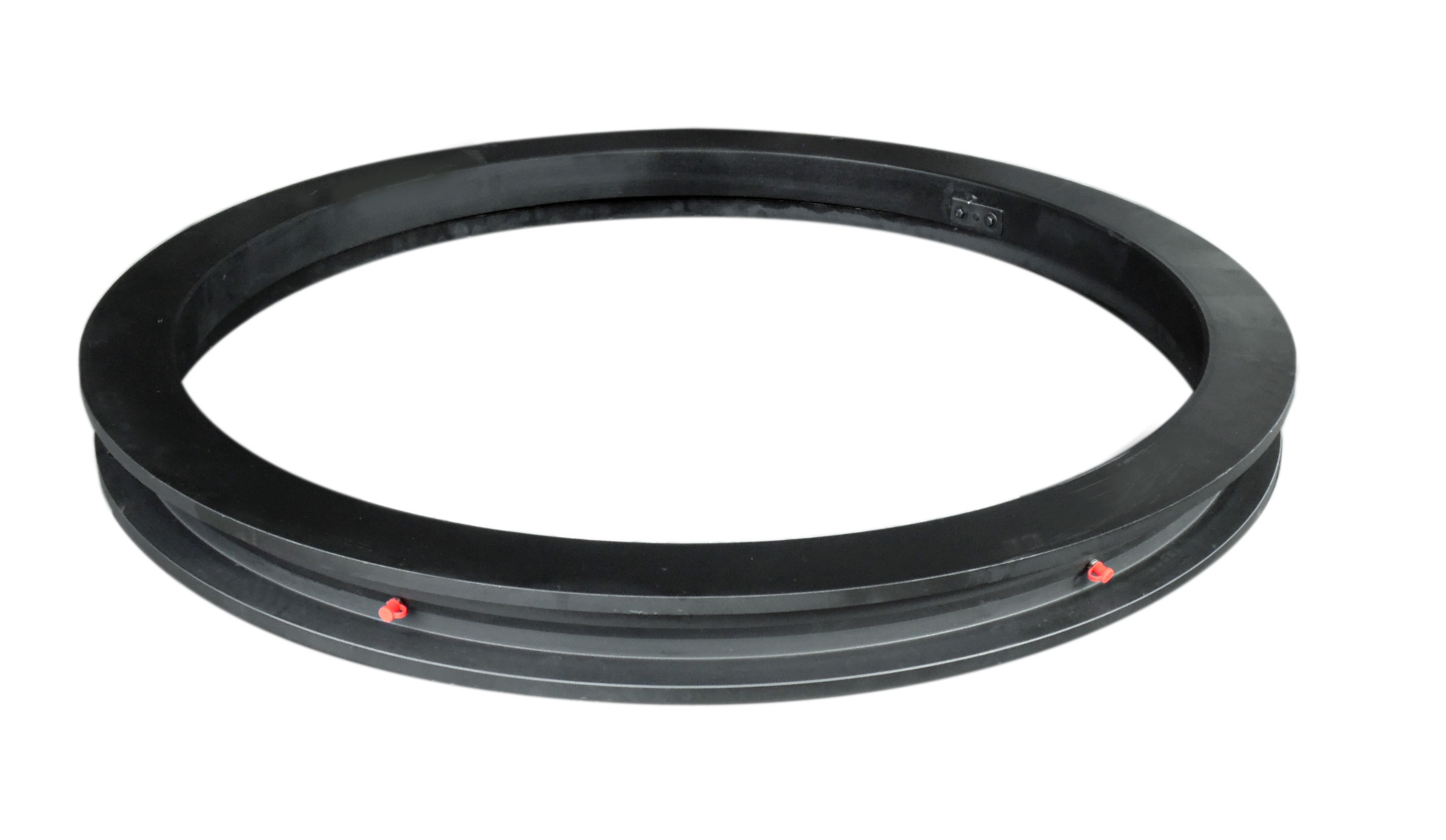

1000 mm - Ball bearing turntable - double ball race , undrilled - HB 90/1000 HB 90-1000
Ball bearing turntable 1000 mm - double ball race HB 90-1000 - undrilled
High-quality component at a top price. Versatile.
- Axial-load: 16.000 kg

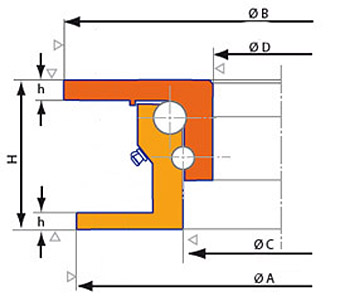

- Other dimensions see figure below
- with lubricator nipples
- Weight: 82 kg
- High quality product
- designed for fifth wheel chassis
| Type | Ø A mm |
Ø B mm |
Ø C mm |
Ø D mm |
Ø E mm |
Ø F mm |
Ø d Kugeln mm |
h mm |
H mm |
Weight [Kg] |
Axial Load [t] |
Drill Pattern |
| HB 90/1000 | 987 | 1000 | 871 | 834 | 952 | 966 | 18 | 10 | 90 | 82 | 16 | - |
