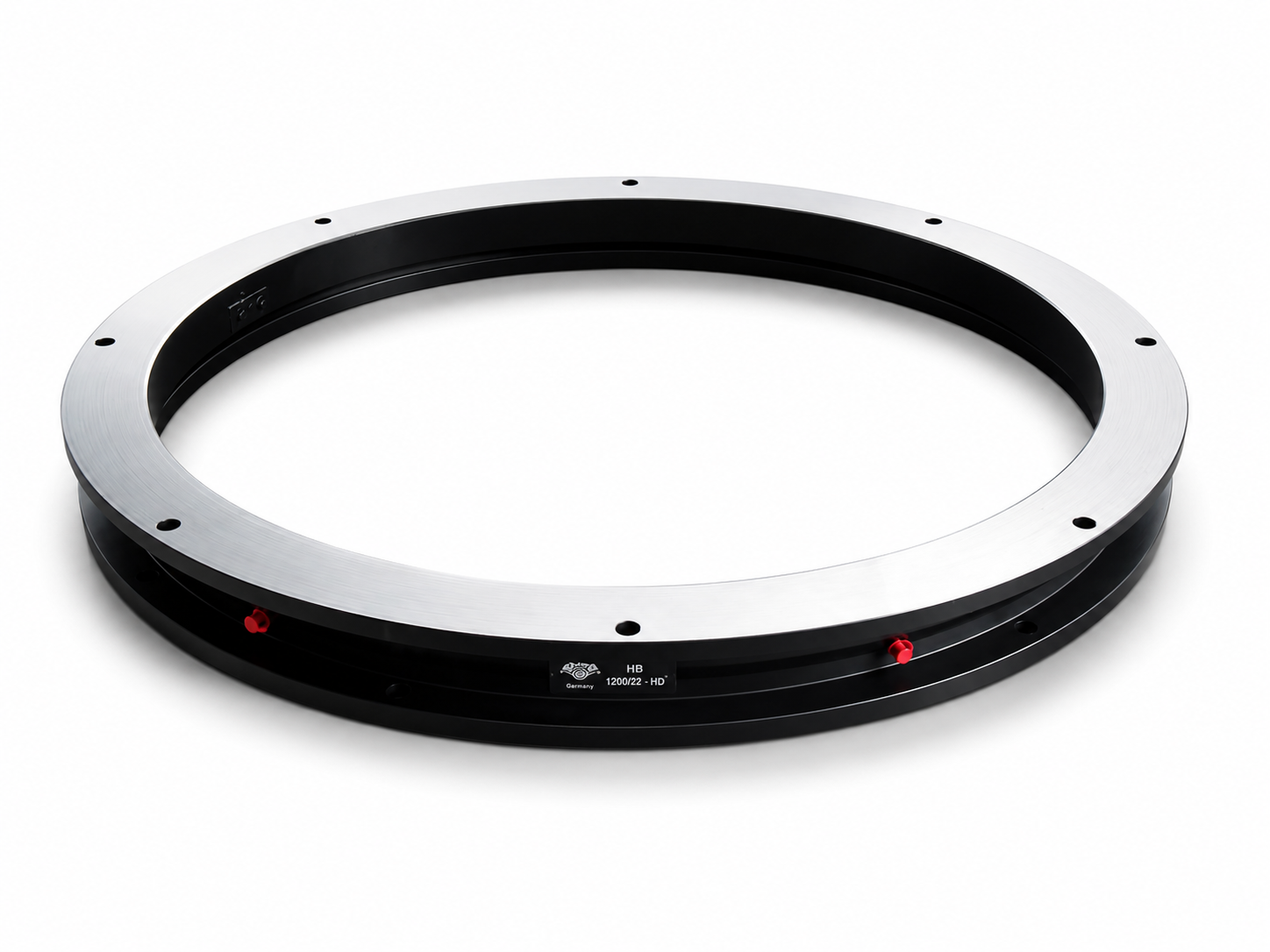

1300 mm - Ball bearing turntable - 1300/22 HD - 1300 22HD - drilled
Ball bearing turntable 1200 mm - 1200/22 HD (Heavy Duty)
for truck trailers, agricultural trailers, irrigation machines and special vehicles
High-quality component at a top price. Versatile.
Technical data
- Axial-load: 16.000 kg
- Other dimensions see figure below
- with lubricator nipples
- Weight: 102 kg
- High quality product
- designed for fifth wheel chassis
| Type | Ø A mm |
Ø B mm |
Ø C mm |
Ø D mm |
Ø E mm |
Ø F mm |
h mm |
H mm |
Weight [Kg] |
Axial Load [t] |
Drilling pattern |
| HB 1300/22 HD | 1300 | 1315 | 1185 | 1160 | 1260 | 1274 | 16 | 90 | 102 | 16 | 8L (b) |
