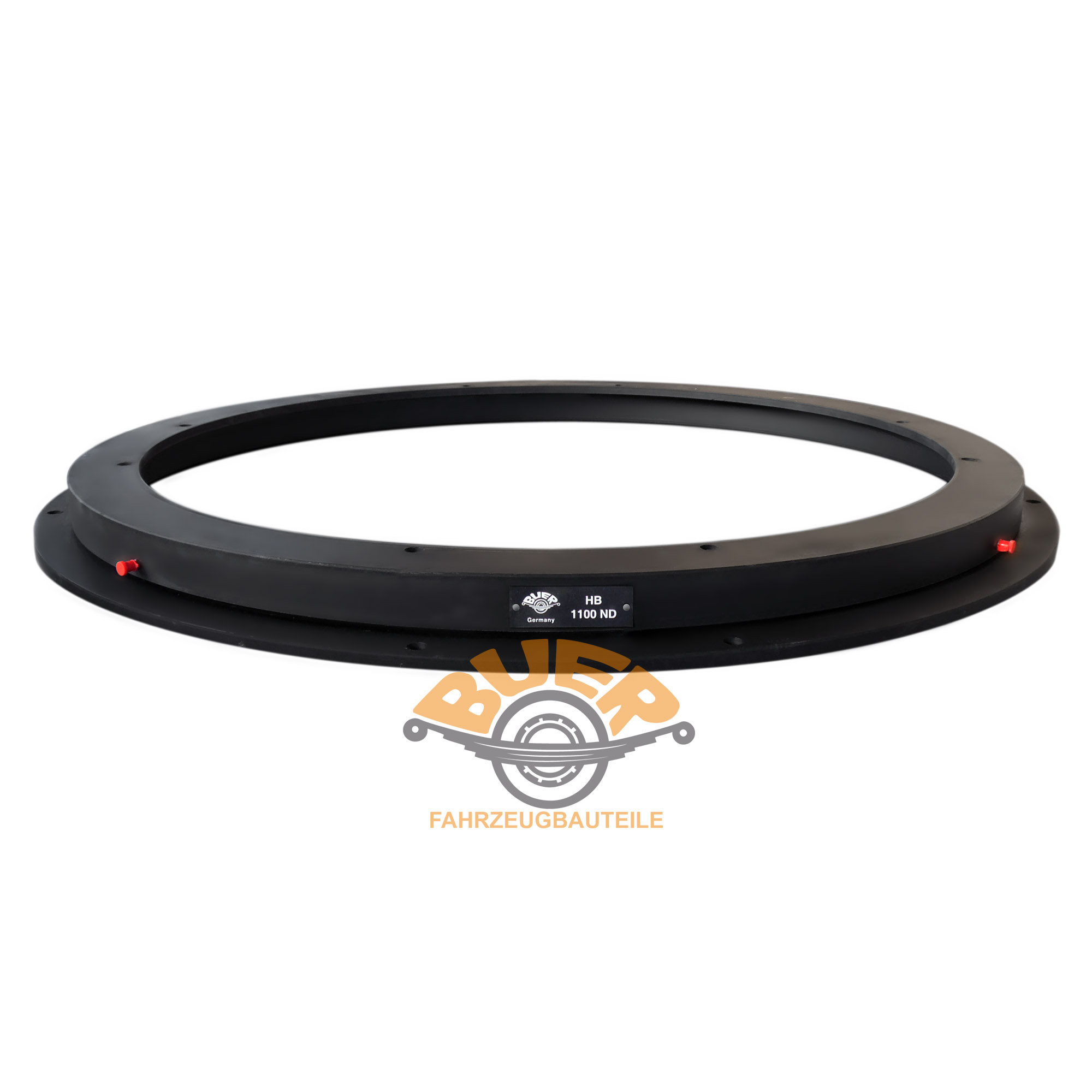

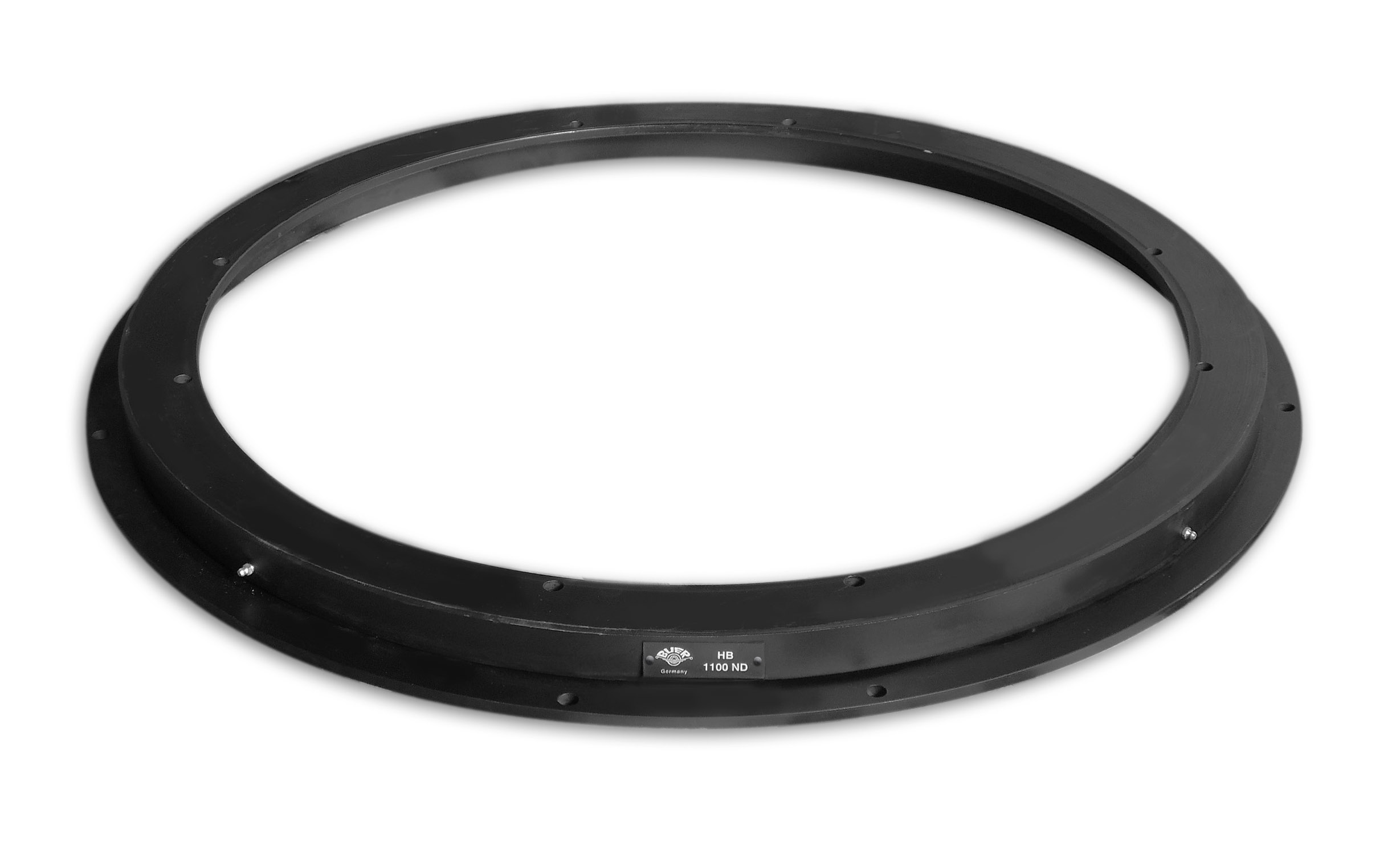

1100 mm - Ball bearing turntable 7.5t - 1100ND - drilled
Ball bearing turntable HB 1100ND - 1100 mm drilled with Z-profile
- Axial-load: 7500 kg
- Other dimensions see figure below
- with 4 lubricator nipples
- Weight: 60 kg
- High quality product
- designed for fifth wheel chassis
| Type | Ø A mm |
Ø B mm |
Ø C mm |
Ø D mm |
Ø E mm |
Ø F mm |
h mm |
H mm |
Ø b Balls mm |
Weight [Kg] |
Axial Load [t] |
| HB 1100ND | 1102 | 1027 | 890 | 963 | 1070 | 920 | 12 | 60 | 15 | 70 | 7,5 |
The ball bearing turntable is provided with holes by the customer. Fixing by welding is not allowed!
Note: Free shipping within Germany. - Shipping costs to other countries on demand.
