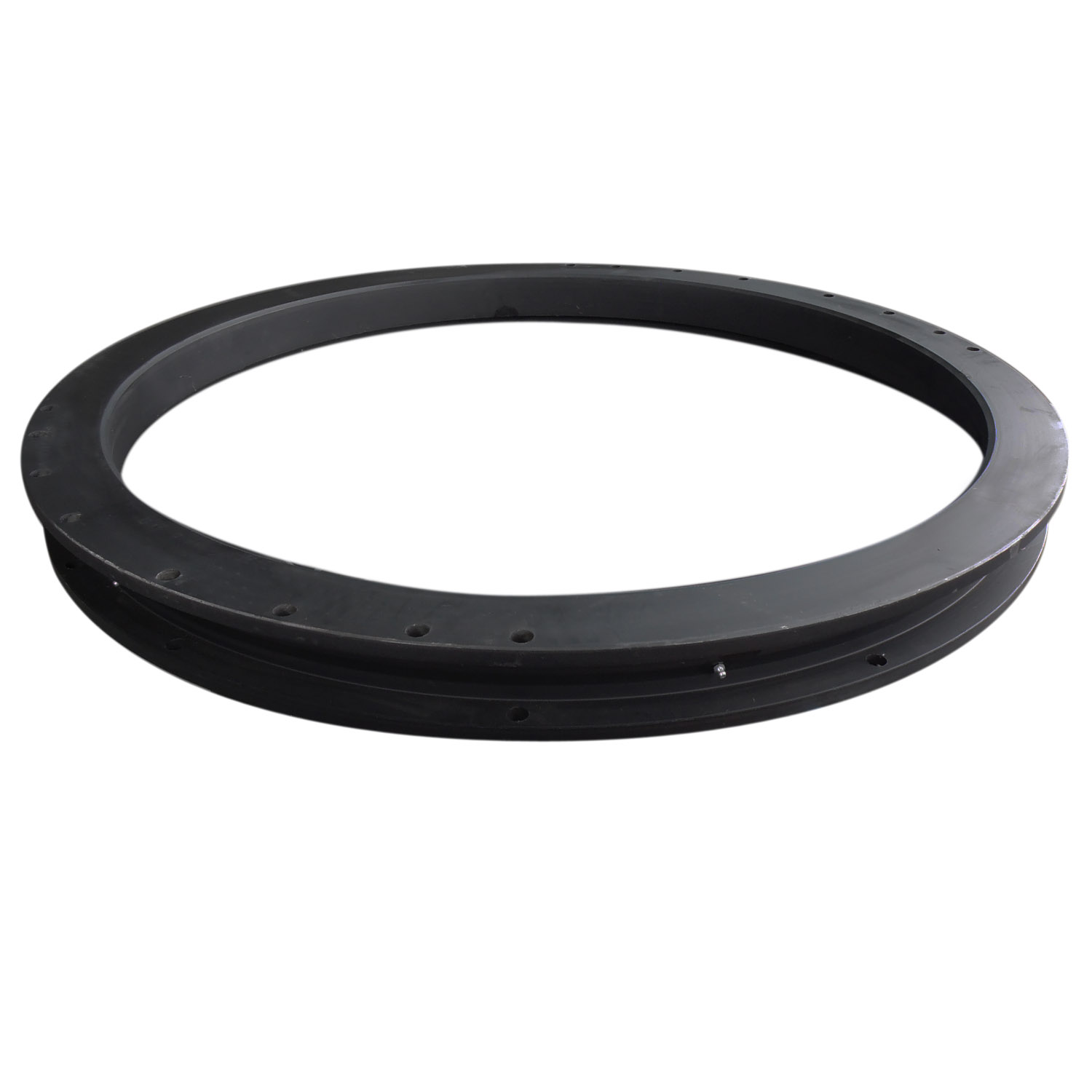

Ball bearing turntable / ball race - 1200 mm double race gebohrt HB 90/20-1212 - special drilling pattern
Ball bearing turntable / ball race - 1200 mm double race gebohrt HB 90/20-1212
special drilling pattern
High-quality component at a top price. Versatile.
- Technical data
- Axial-load: 20.000 kg

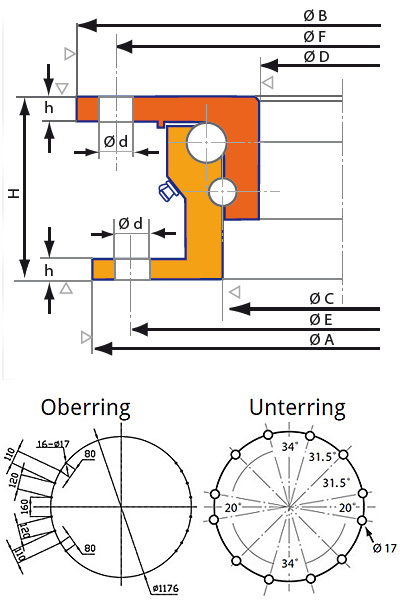

- Other dimensions see figure below
- with lubricator nipples
- Weight: 108 kg
- High quality product
- designed for fifth wheel chassis
| Type | Ø A mm |
Ø B mm |
Ø C mm |
Ø D mm |
Ø E mm |
Ø F mm |
Ø d Balls mm |
h mm |
H mm |
Weight [Kg] |
Axial Load [t] |
Drilling p. |
| HB 90/20-1212 [So] | 1195 | 1208 | 1079 | 1038 | 1160 | 1174 | 24 / 16 | 20 | 92 | 108 | 20 | Sonderbohrbild |
