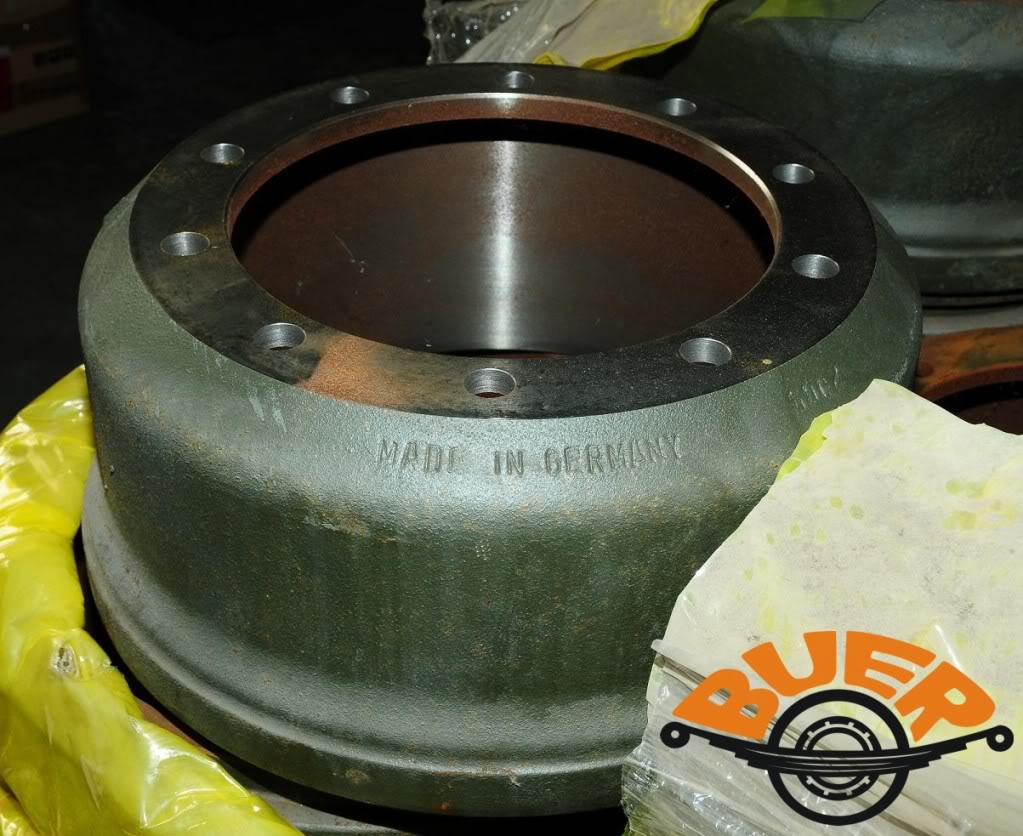

Brake drum 420 x 180 / 60.02 for SAF Axles

Brake drum 420 x 180 / 6002
for SAF axles

Replica drum from German foundry, which also produces for the original equipment!

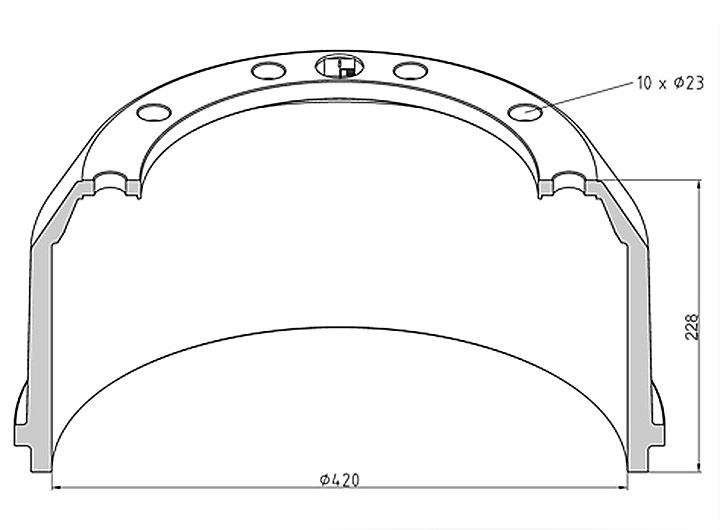

Technical data

Size: .................................420 x 180
Diameter: ........................420 mm
Brake track:......................193 mm
Hight: ...............................228 mm
Pitch circle diamter :........335 mm
Centre bore-Ø: .................290 mm
Holes:...............................10
Bore-Ø: ............................23 mm
Weight: ............................45 kg



Note: The brake drum is in tip-top fine and definitely unused.  Due to long storage, it is partially covered with rust.
