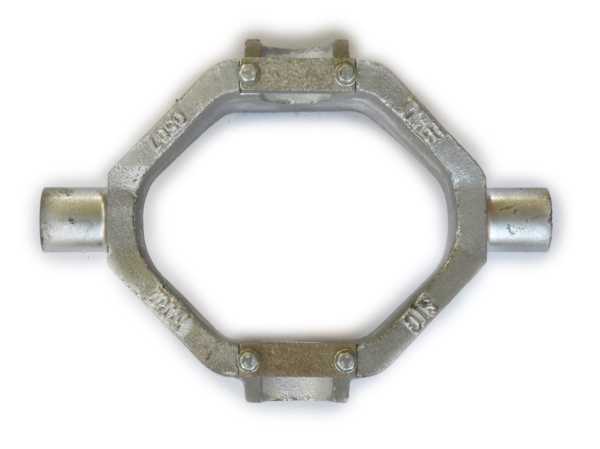

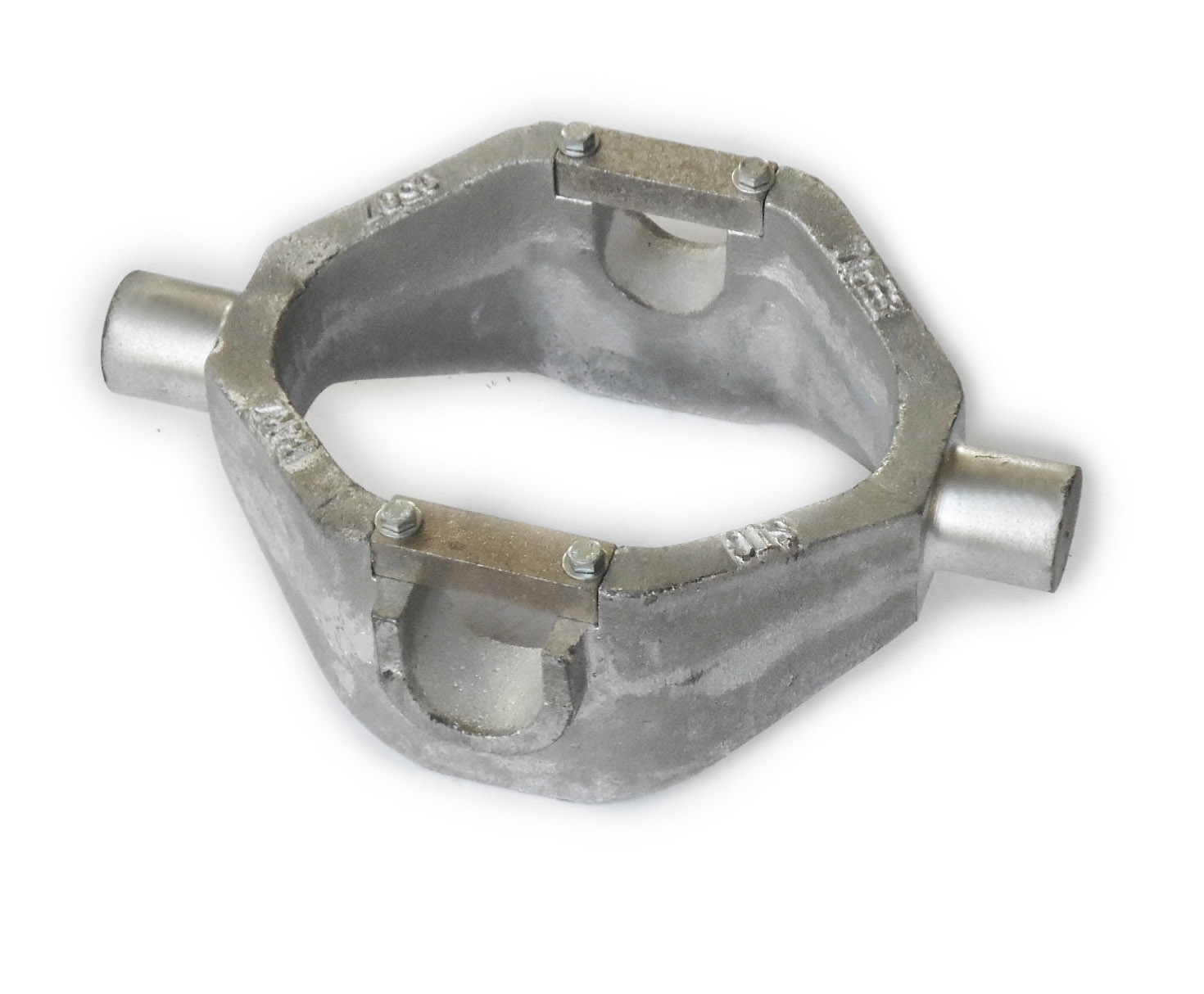

Cradle / Gimbal for Hydraulic cylinders / telescopic cylinders 45 mm size 5 Mariz - galvanized
Cradle / Gimbal for Hydraulic cylinders / telescopic cylinders - Size 5 - galvanized
Pin Ø: 45 mm

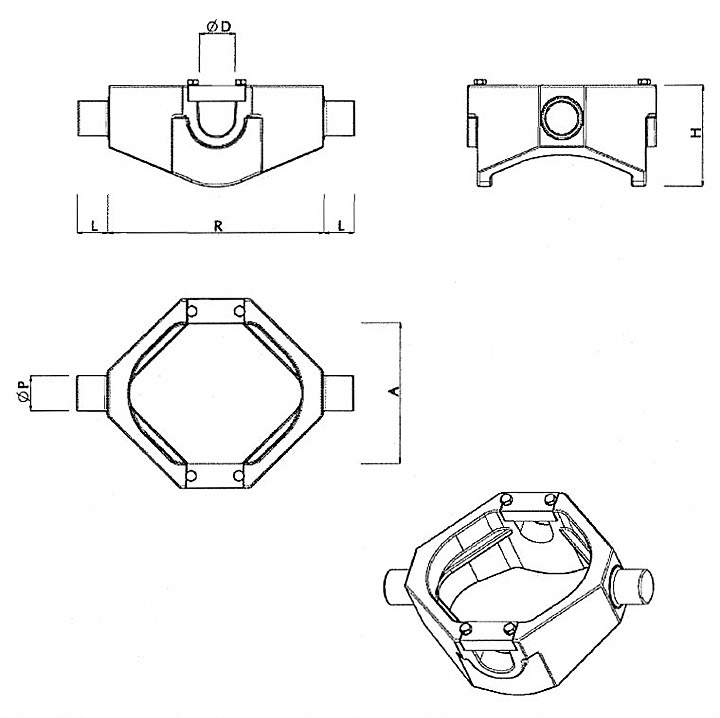

all in [mm]
Pin Ø: 45 mm
| Description | ØD | A | ØP | R | L | H | Weight [Kg] |
| Cradle / Gimbal for Hydraulic cylinders 45 mm pins | 46 | 203 | 45 | 280 | 40 | 126 | 15,75 |
