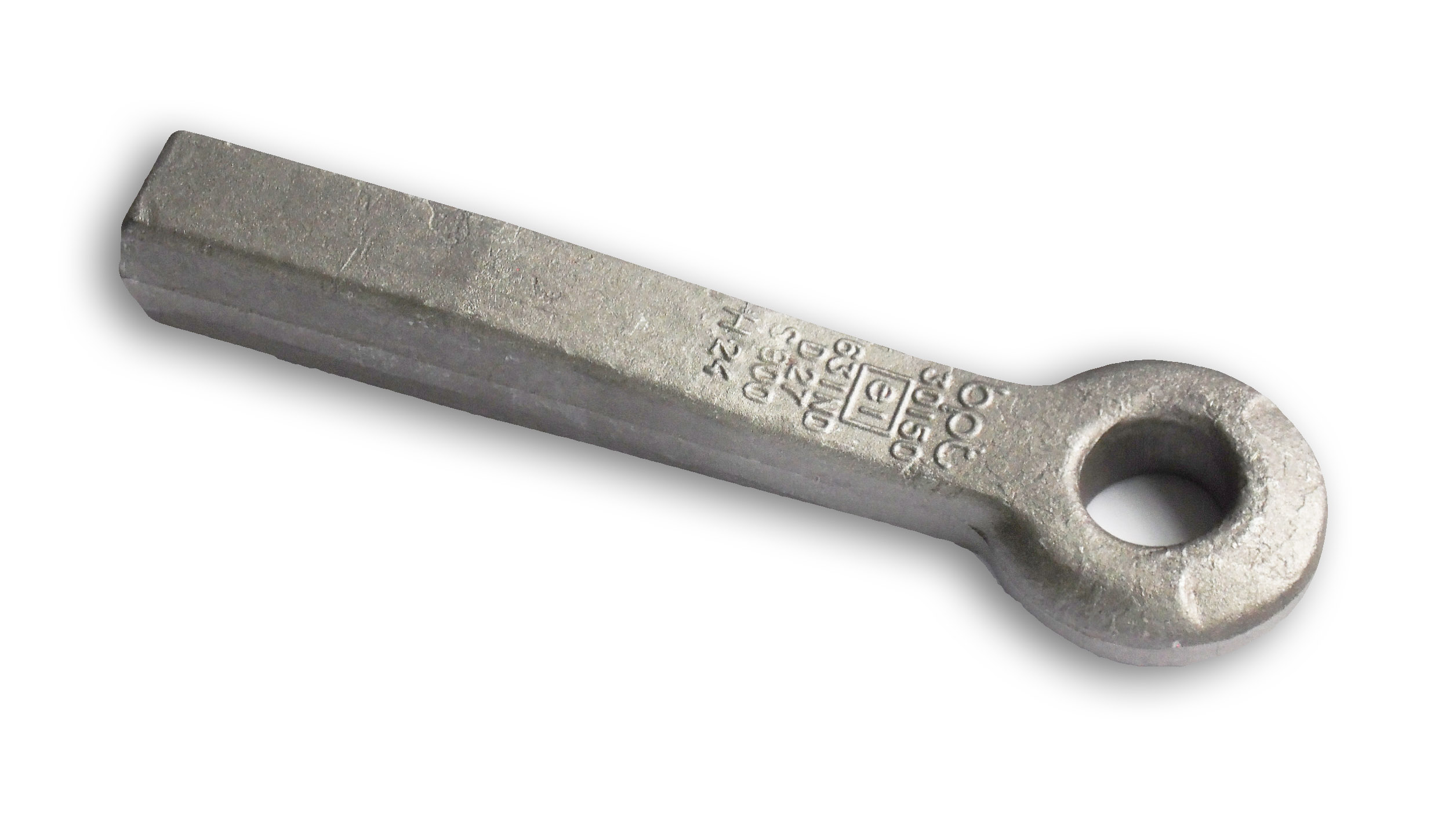

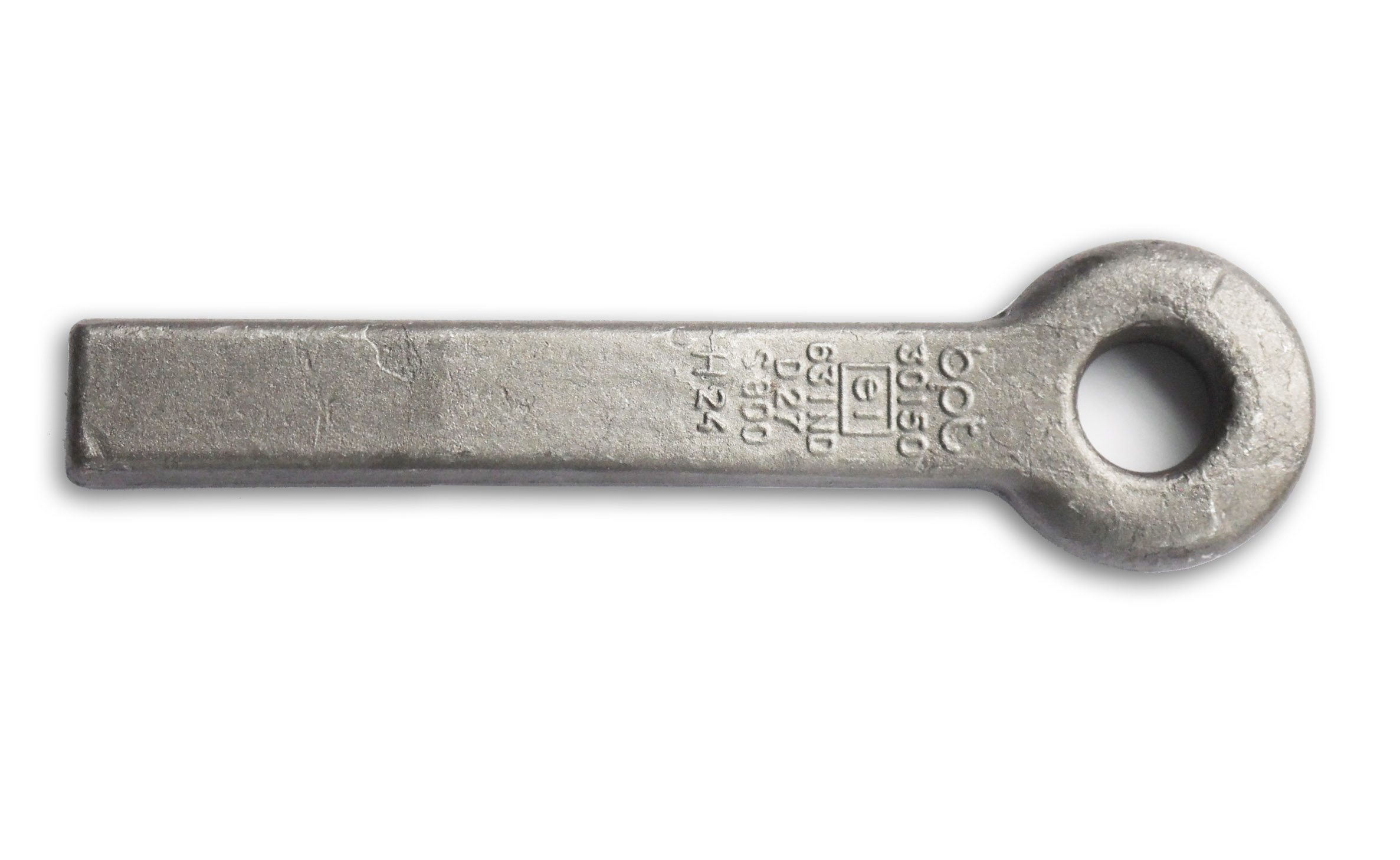

Drawbar eye to weld in tow bars [ 40 mm] 50 x 50 mm - BPT
![Drawbar eye to weld in tow bars [ 40 mm] 50 x 50 mm - BPT](images/product_images/original_images/SAM_0821.JPG "Drawbar eye to weld in tow bars [ 40 mm] 50 x 50 mm - BPT")
![Drawbar eye to weld in tow bars [ 40 mm] 50 x 50 mm - BPT](images/product_images/original_images/SAM_0823.JPG "Drawbar eye to weld in tow bars [ 40 mm] 50 x 50 mm - BPT")
![Drawbar eye to weld in tow bars [ 40 mm] 50 x 50 mm - BPT](images/product_images/original_images/zugoese50x50-zeichnung (1).jpg "Drawbar eye to weld in tow bars [ 40 mm] 50 x 50 mm - BPT")
Zugöse zum Einschweißen 50 x 50 mm Ø 40 mm
BPT55 Typ ZG1
Manufacturer / EU responsible person
BPT55 Typ ZG1
Norm : DIN 74054 -40 A
- zul. Stützlast bis 25 km/h
- Größe: 50x50 mm
- zul. Stützlast: 1000kg
- zul. Gesamtgewicht: 5000 kg
- Loch-Durchmesser: 40mm
- Gesamtlänge: 355 mm
- hergestellt aus ST52-3
- mit Prüfzeichen M2940 (TÜV)
- für 40 mm Kuppelbolzen
- ohne Büchse
- Gewicht Zugöse: 5,6 kg
Manufacturer / EU responsible person
- Helmut Buer GmbH Á Co. KG
Am Leveloh 11
45549 Sprockhövel
Tel:+49 2324 091-0
info@buer-kg.de
