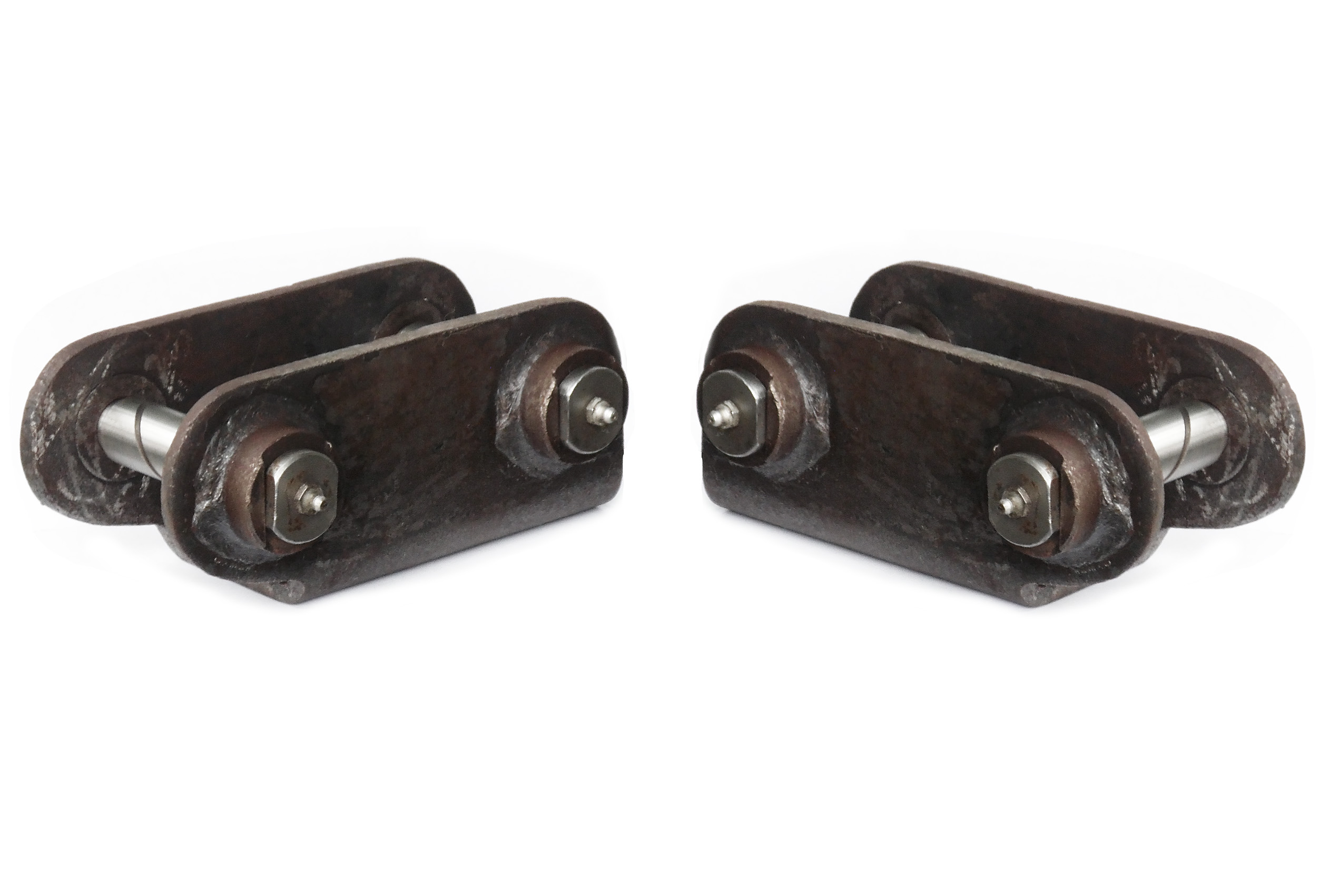

Drawbar spring shoe for drawbar 80 mm right & left incl. 4 spring bolts E5 spring sliding shoe
Drawbar spring shoe for drawbar 80 mm right & left
incl. 4 spring bolts E5 spring sliding shoe
Spring shoe le & ri: ............................80 mm
(suitable for drawbars with a width of 80 mm)
Hight: ................................................100 mm
Lenght:...............................................230 mm
Strenght:..............................................10 mm
Bush:..............................................28/24 mm

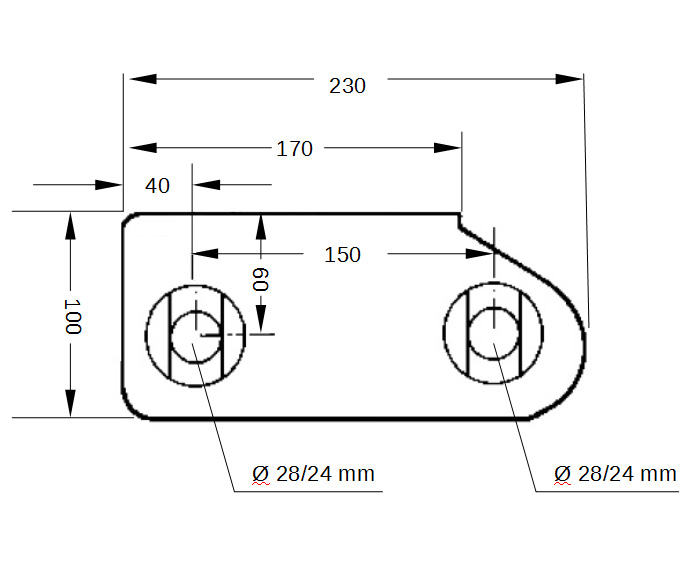

please refer to the sketch above for further dimensions!
incl. 4x bolt spring E 5
Bolt spring E5
| A | B | C | D |
| 107,5 mm | 24,5 mm | 24 mm | 28 mm |
Thread: M22 x 1,5
Note: The spring shoe shows stronger traces of rust due to long storage. This has no effect on the functionality of the product and is not a reason for complaint! It is an unused item!
