Hydraulic Telescopic cylinder 180 x 3 x 1600 ( 3 extensions ) Type 312904 Mariz

Hydraulic Telescopic cylinder Type 312904 with ball lead
180 x 3 x 1600


Stroke: .............................. 1600 mm
Extension:............................3
Stroke volume:.....................18,2 dm³
Pressure max: ....................180 bar
Temperature range:..............-30°C - 100°C


Ø Extensions (mm): ..................... 105x 120 x 140
1. Extension (180 bar) ........15,6 t
2. Extension (180 bar) ........20,3 t
3. Extension (180 bar) ........27,7 t

Made in Italy

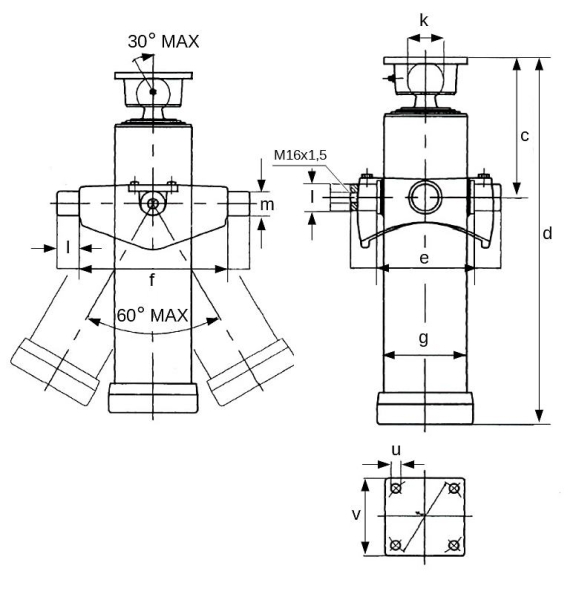

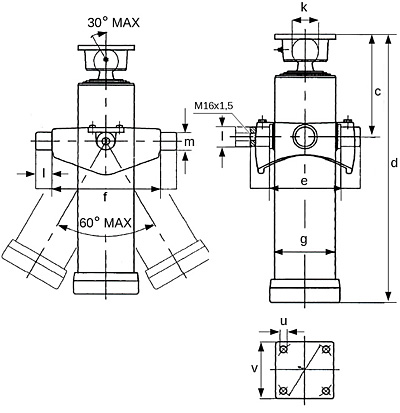

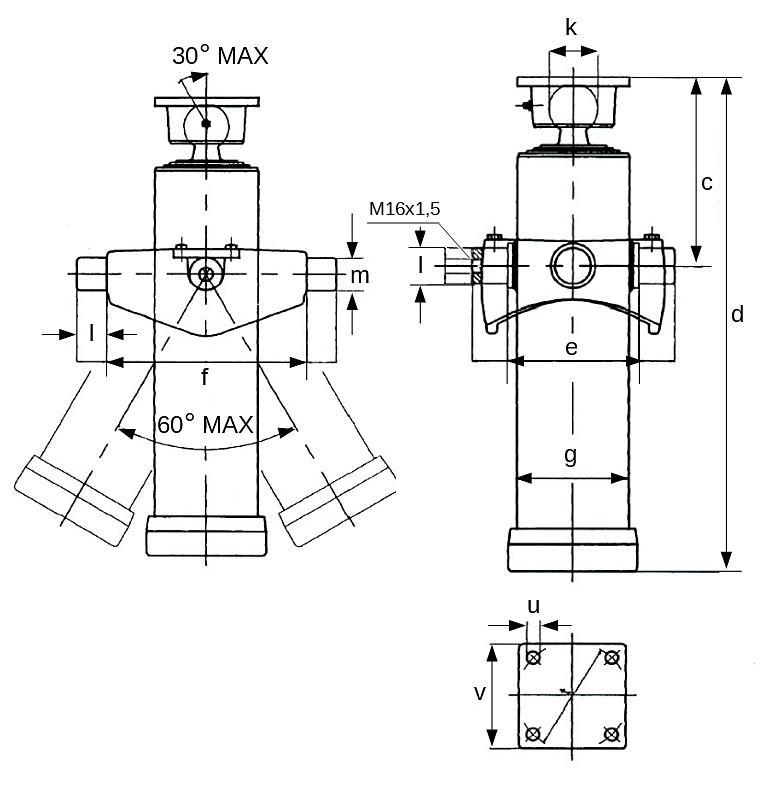

c	d	e	f	g	l	m	t	u	v	k
190	725	185	280	165	40	45	125	14,5	125	55
