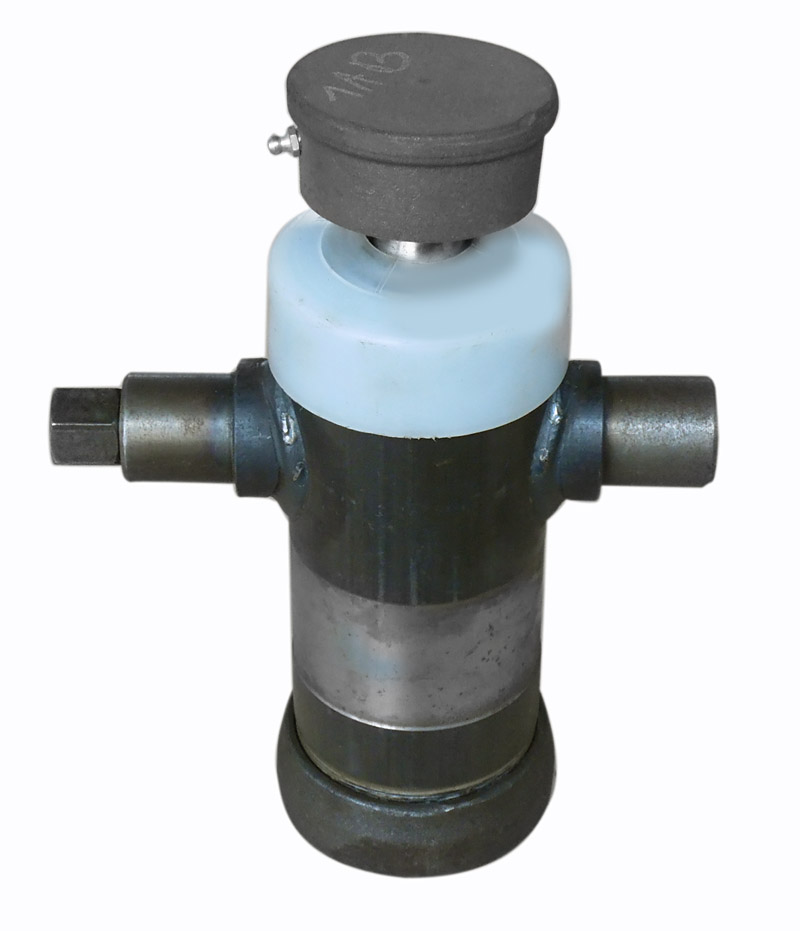

Hydraulic Telescopic cylinder 95 x 3 x 510 ( 3 extensions ) Type 1AB Mariz

Hydraulic Telescopic cylinder Type 1AB Mariz - 3 extensions
95 x 3 x 510


Stroke: ................................. 510 mm
Extensions:............................3
Weight:..................................13,2  Kg
Stroke volume:.......................1,6 dm³
Temperature range:................-30°C - 100°C
Pressure max.:.....................180 bar
Use: ................................... Single side tippers/dumpers or three-way tippers/dumpers, trailers


Ø Extensions (mm): ..................... 45x 60 x 75
1. Extension (180 bar) ........2,9 t
2. Extension (180 bar) ........5,1 t
3. Extension (180 bar) ........7,8 t

Made in Italy

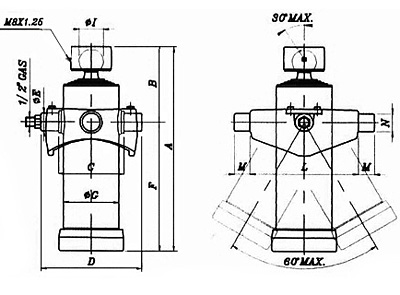

A	B	C	D	E	F	G	I	L	M	N
313	140	129	209	40	173	95	45	-	-	-

Hersteller:
Mariz srl
Viale dell’Industria, 32
35014 Fontaniva (PADOVA) - Italy
