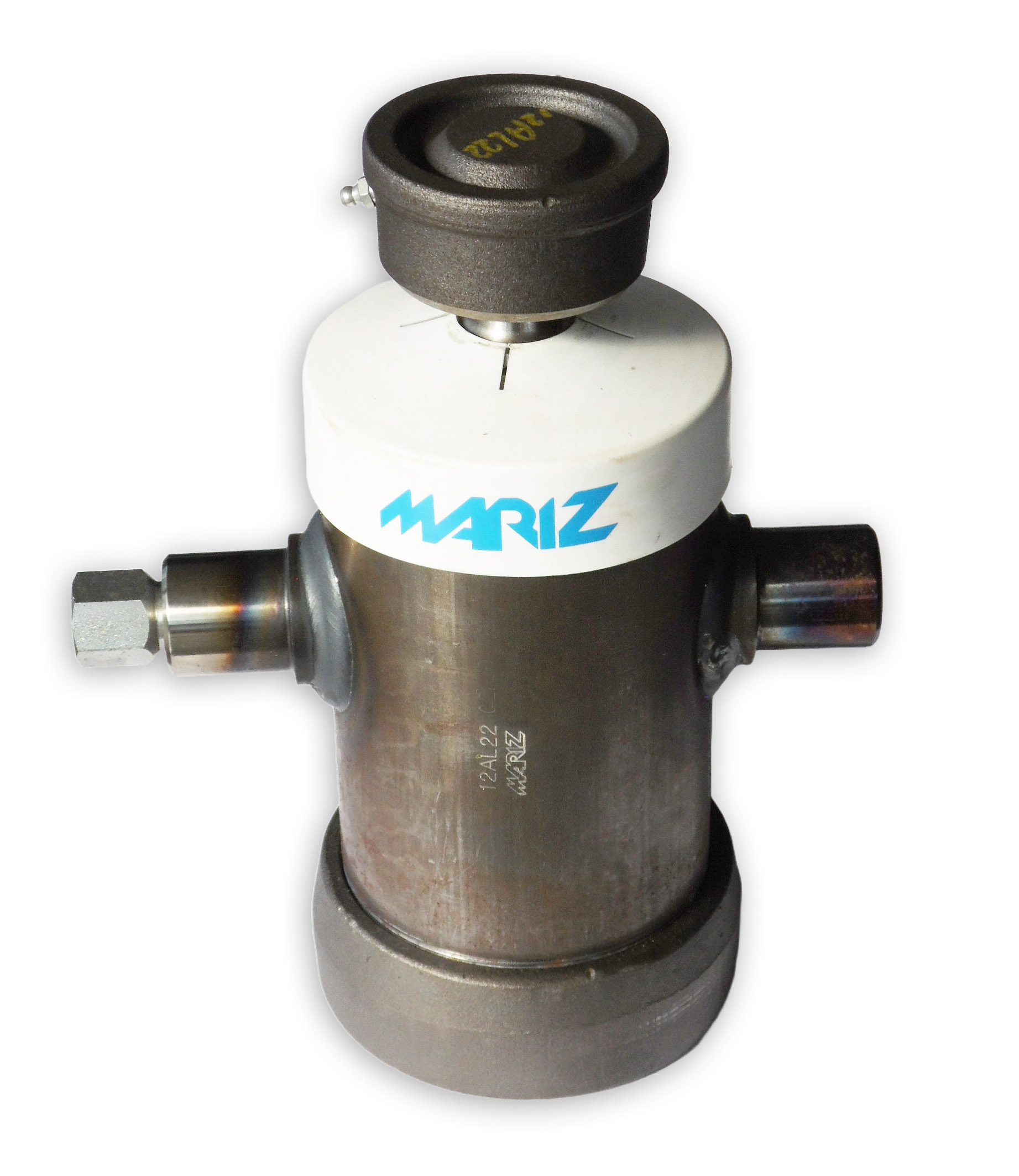

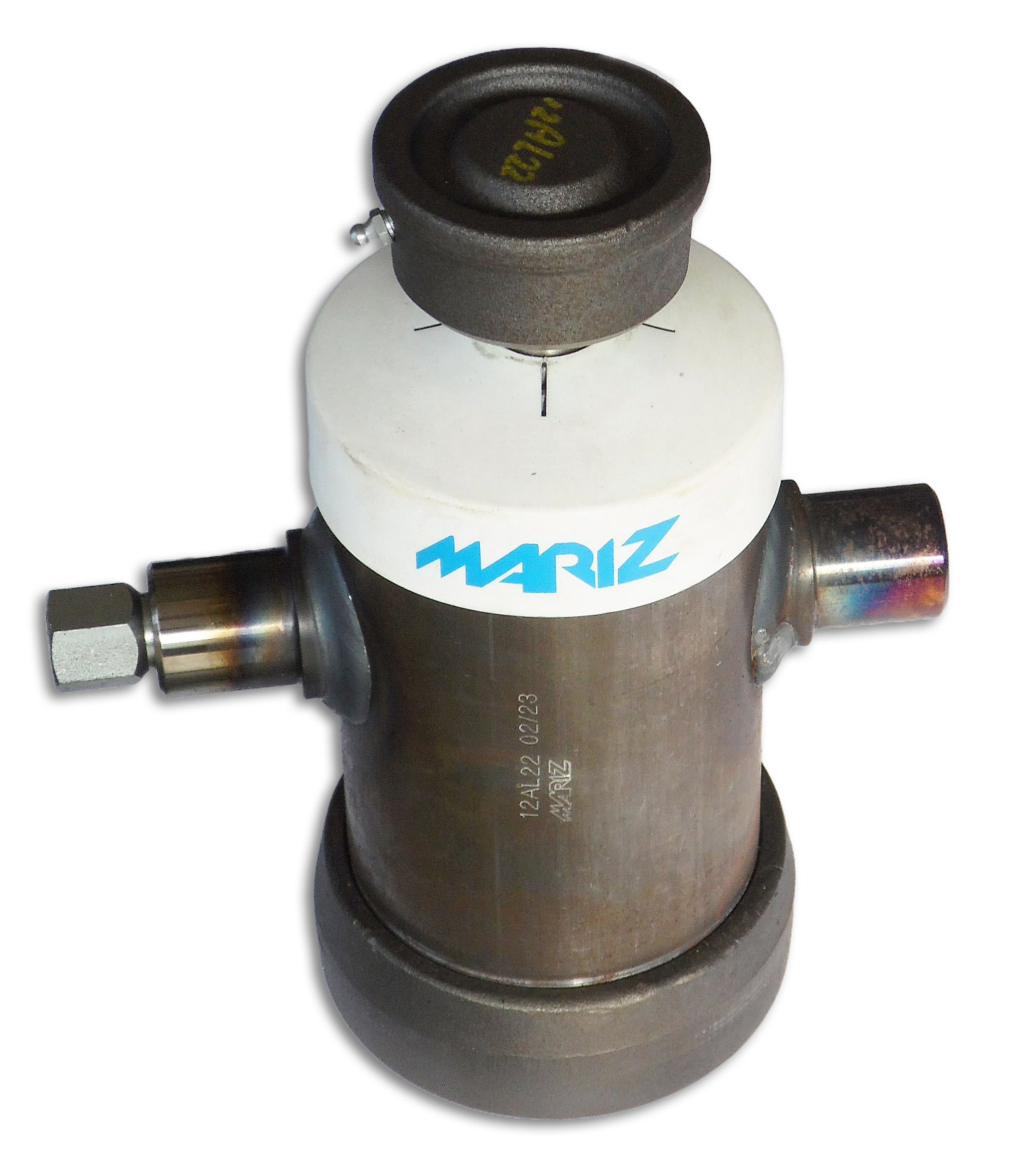

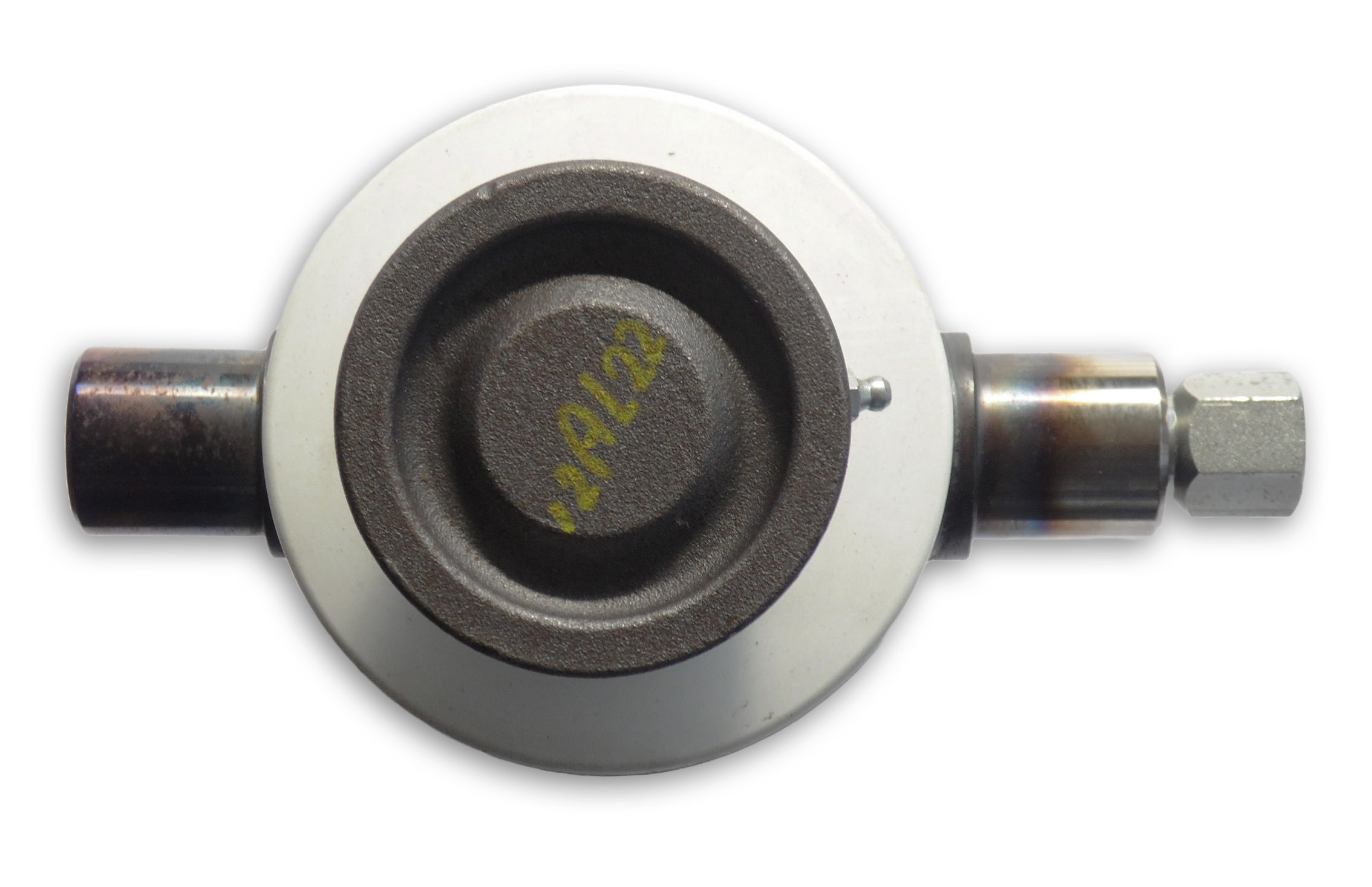

Hydraulic Telescopic cylinder 125 x 5 x 840 ( 5 extensions ) Type 12AL22 Mariz

Mariz Hydraulic Telescopic cylinder Type 12AL22 with ball lead

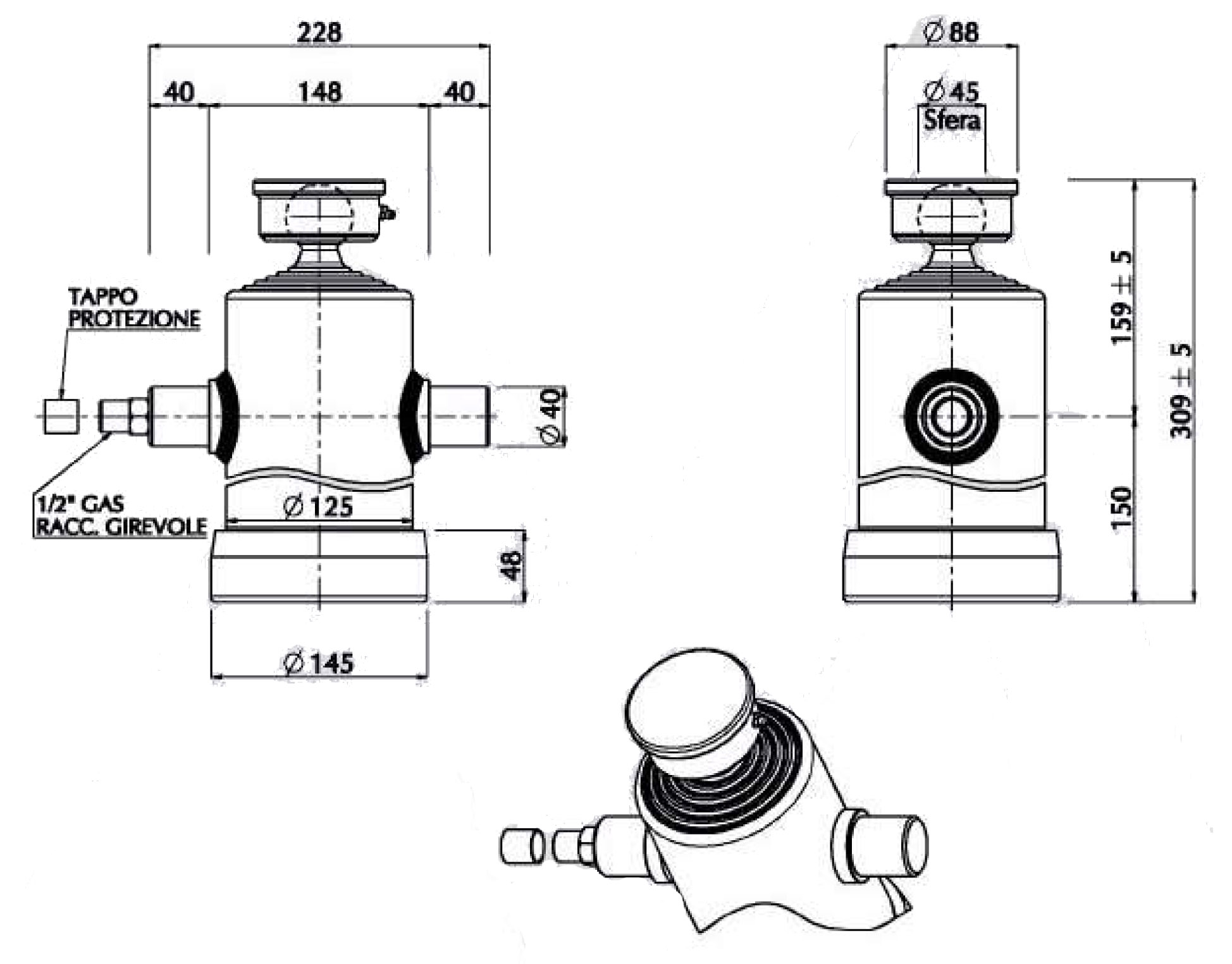

125 x 5 x 840


Stroke: .............................. 840 mm
Extensions:.........................5
Weight:..............................22,25  Kg
Lifting force: .......................7,1 t
Oil volume: ........................4.5 Liter
Temperature range:............-30°C - 100°C
Pressure max.:..................200 bar


Ø Extensions (mm): ..................... 45 x 60 x 75 x 90 x 105
1. Extension (150 bar) ........2,4 t
2. Extension (150 bar) ........4,2 t
3. Extension (150 bar) ........6,6 t
4. Extension (150 bar) ........9,5 t
5. Extension (150 bar) ......13,0 t

Made in Italy





Manufacturer / EU responsible person

• MARIZ SRL
  Viale dell’Industria, 32
  35014 Fontaniva (PADOVA) - Italien
  Tel:+39 049 5942402
  info@mariz.com
