500 mm - Ball bearing turntable - HB 500 ZG, 500ZG - drilled (Z-profile)

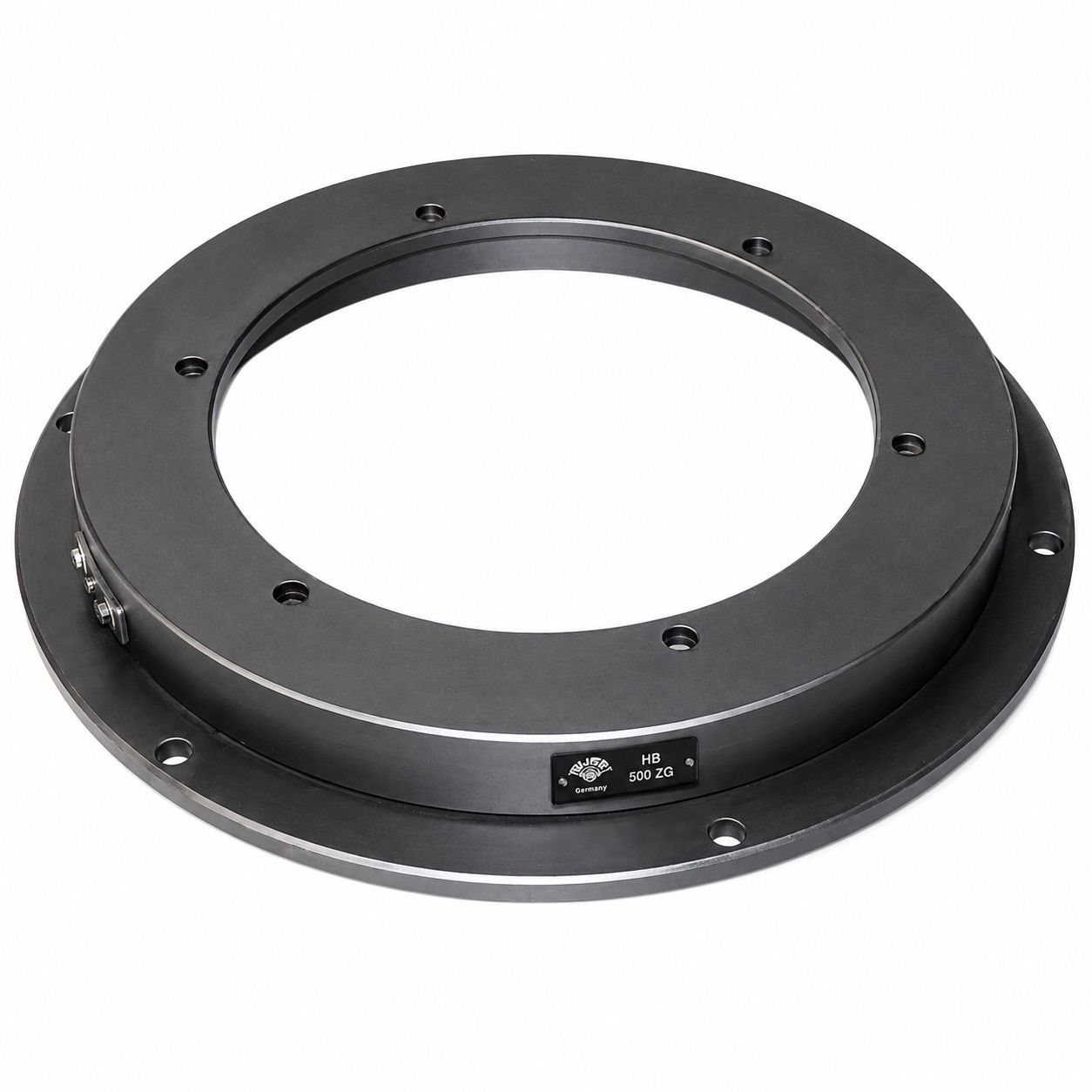

Ball bearing turntable HB 500 ZG - 500mm drilled with Z-profile
- Axial load: 1800 kg
- Hole circle Upper ring: 340 mm
- Hole circle lower ring: 475 mm
- Diameter holes: 14 mm
- Other dimensions see figure below
- with lubricator nipples
- High quality product
- designed for fifth wheel chassis
The ball bearing turntable is provided with holes by the customer. Fixing by welding is not allowed!
Note: Free shipping within Germany. - Shipping costs to other countries on demand.
| Type | Ø A mm |
Ø B mm |
Ø C mm |
Ø D mm |
h mm |
H mm |
Ø b Balls mm |
Weight [Kg] |
Axial Load [t] |
| HB 500ZG | 500 | 437 | 310 | 379 | 10 | 52 | 1b | 19 | 1,8 |
